HPZ 4-in-1 Zoom Track Light — Power, CCT and Beam Set On Board
LUXERA HPZ 4-in-1 zoom LED track light: 20/25/30 W selectable power, 3000/3500/4000 K selectable CCT and 15°–55° manual zoom in one housing. TRIAC dimmable, 3-phase track adapter, CRI 90+, 5-year warranty.
Description
The HPZ series puts four functions on one luminaire. Power (20, 25 or 30 W), colour temperature (3000, 3500 or 4000 K) and beam spread (15°–55° manual zoom) are all set on the fitting; light levels can then be refined with TRIAC dimming.
For a distributor this means one stocked model covers several lighting conditions. For a contractor it means wattage and CCT can be matched to the actual ceiling height and scheme on site — without changing the luminaire or reordering.
Product gallery
Click any photo to enlarge it and view the full technical specifications. Wattage variants share the same housing.
Features

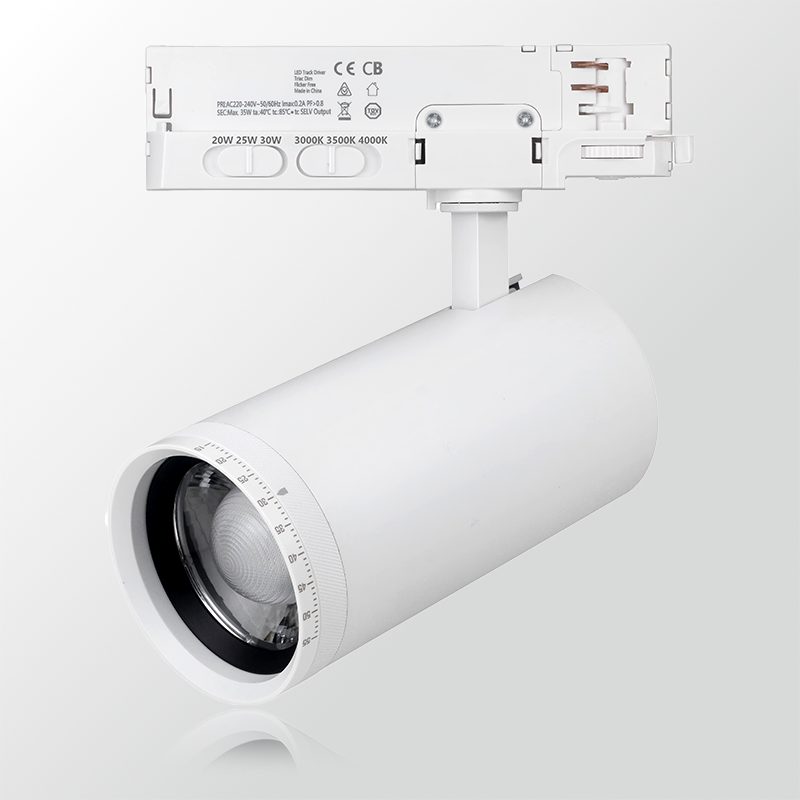

- Power selectable on the adapter: 20 W / 25 W / 30 W
- CCT selectable on the adapter: 3000 K / 3500 K / 4000 K
- Manual zoom optic: 15°–55° beam spread
- TRIAC dimmable for local light-level control
- CRI above 90, maximum 2700 lm
- Bridgelux COB light source
- Cold-forged aluminium housing, powder coated
- 350° rotation and 90° tilt, locked after aiming
- 5-year warranty, 50,000 h rated life (L80 B10)
Technical & datasheet
Click any photo in the gallery above to open these specifications beside the enlarged image.
| Product code | LX-TL-30W-HPZ |
|---|---|
| Input voltage | AC 200–240 V, 50/60 Hz |
| Selectable power | 20 W / 25 W / 30 W |
| Power factor | >0.9 |
| Selectable CCT | 3000 K / 3500 K / 4000 K |
| Colour rendering | CRI >90 |
| System efficacy | 90–100 lm/W at CRI 90 / 4000 K |
| Maximum luminous flux | 2700 lm |
| Beam angle | Manual zoom, 15°–55° |
| Dimming | TRIAC dimmable |
| LED source | Bridgelux COB |
| Track adapter | 4-wire, 3-phase |
| Housing | Cold-forged aluminium, powder coated |
| Finish | White or black |
| Dimensions | Ø85 × 170 mm |
| Movement | 350° rotation, 90° tilt |
| Ingress protection | IP20, dry indoor areas |
| Rated life | 50,000 h (L80 B10) |
| Warranty | 5 years |
Product list
HPZ 4-in-1 zoom series
One model code covers all power, CCT and beam settings — selected on the adapter before installation.
| Model | Power | LED voltage | Current | Efficacy | Size |
|---|---|---|---|---|---|
| LX-TL-30W-HPZ | 20 / 25 / 30 W selectable | AC 200–240 V | — | 90–100 lm/W | Ø85 × 170 mm |
Photometric files (IES/LDT), installation drawings and certification documents are provided by our sales team per model. Track adapter and circuit configuration are confirmed per order. Adapter brands available across the range include Global, Powergear, Unipro, STUCCHI and Eutrac.
Application scenarios
Illustrative scene — representative application.
Which track system
4-Wire system
Three circuits on one run.
2-Wire system
Single-phase installations.
