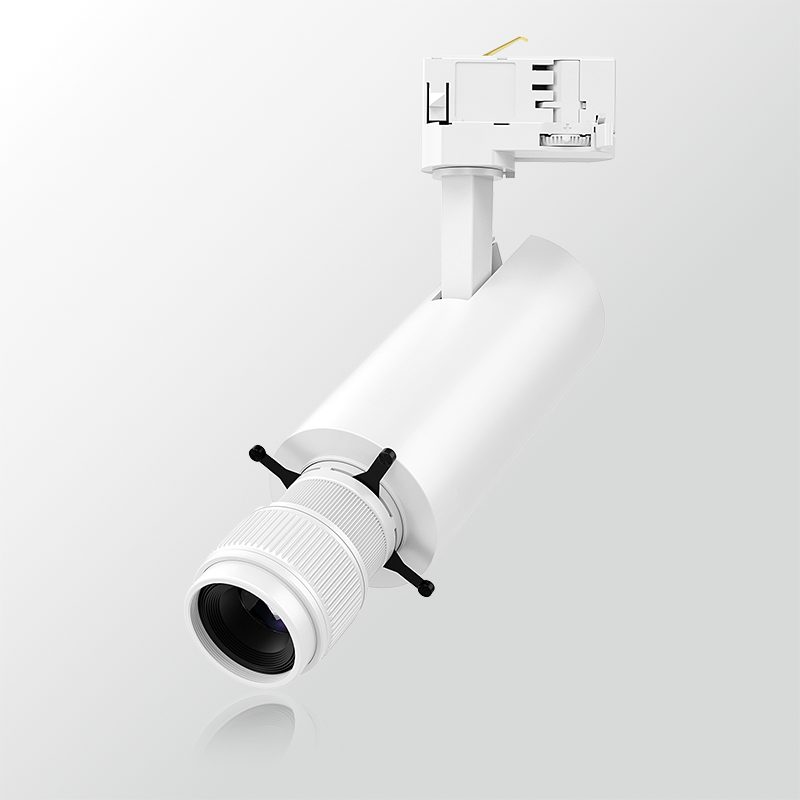

Shapeable Series — LED Track Light with Shaped Beam
LUXERA shapeable LED track light: the light shape is cut by hand between 20° and 35°, 5–35 W, for displays and artwork that do not fit a round beam.
Description
The shapeable series solves a specific problem: some displays are not round. The beam shape is cut by hand between 20° and 35°, so the light lands on the object instead of spilling around it.
Two body sizes cover 5 W to 35 W, with the same adapter range as the rest of the mains-voltage families.

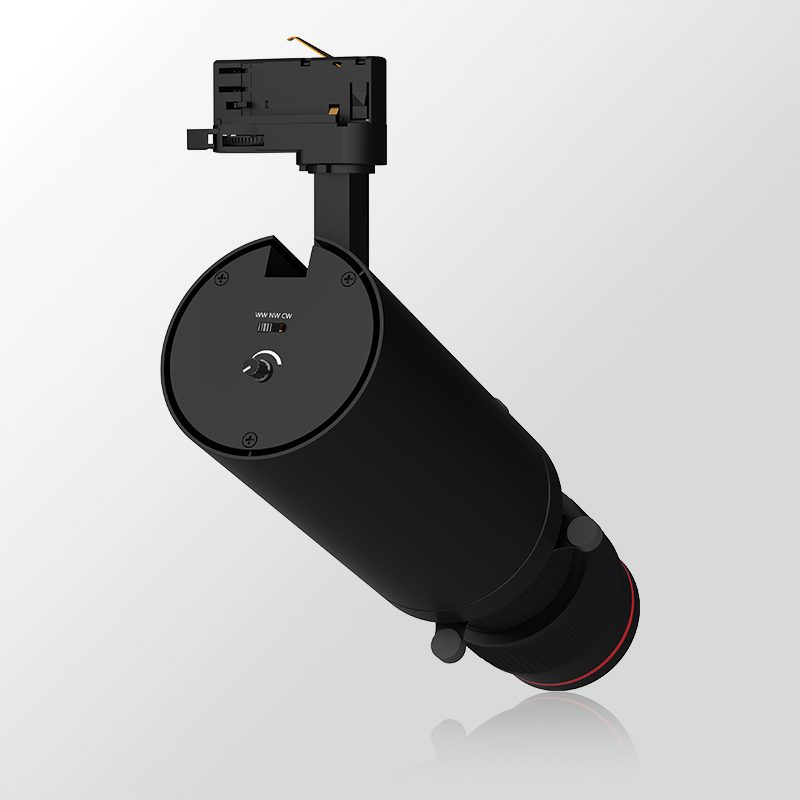

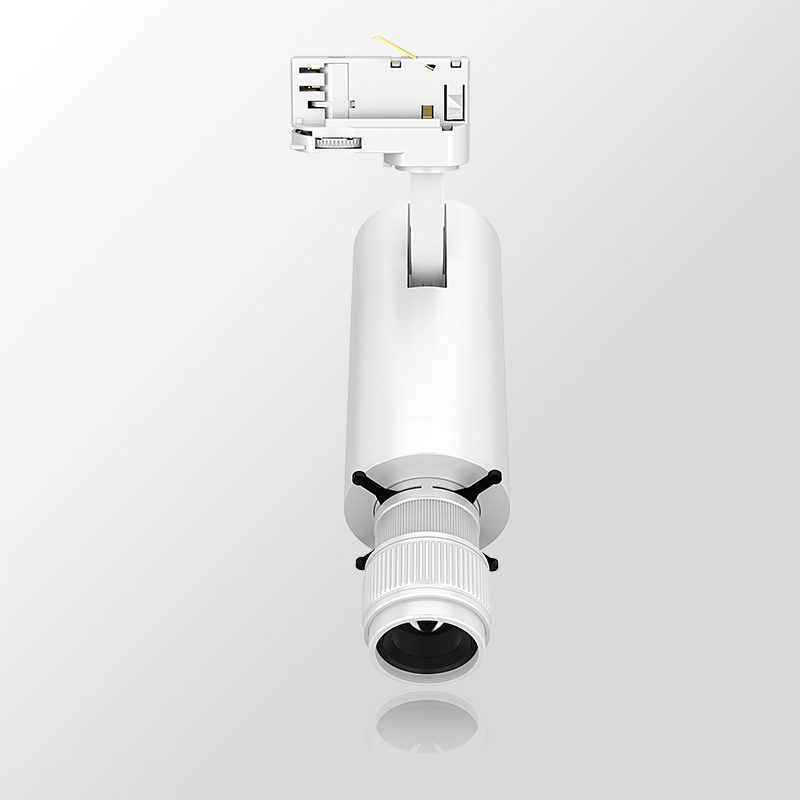

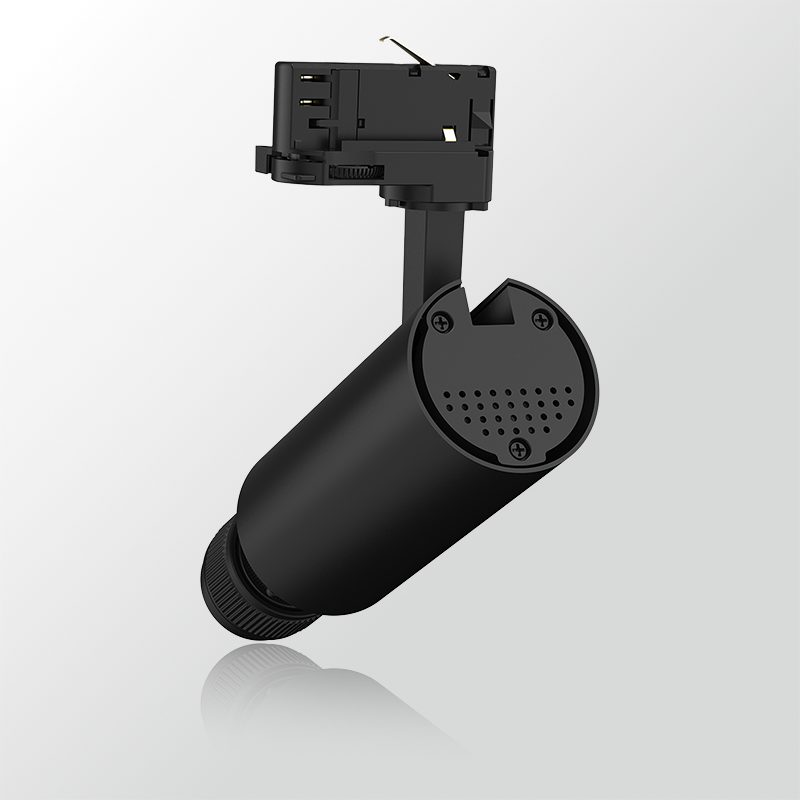

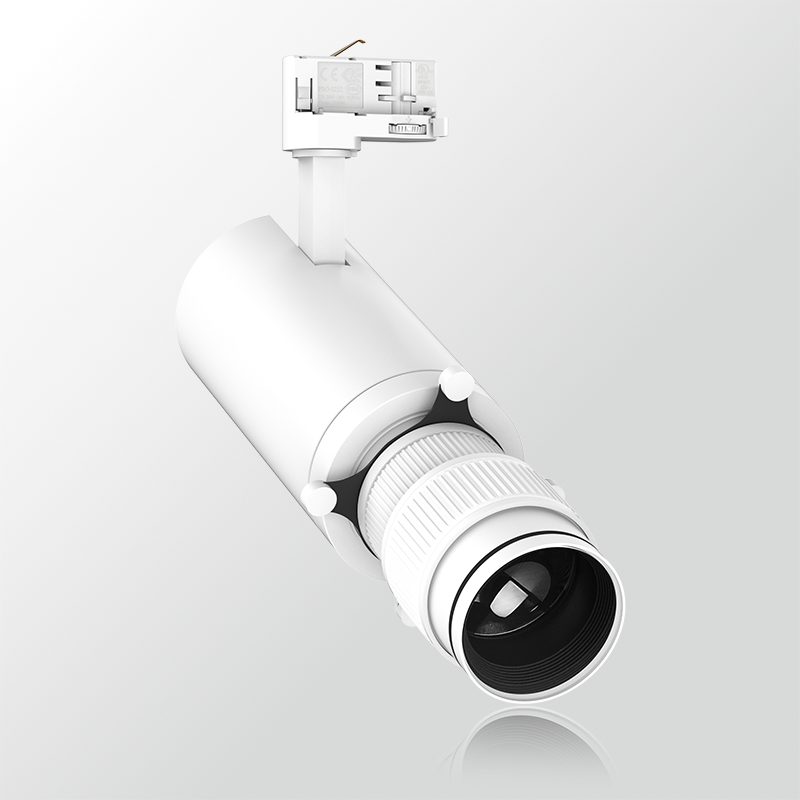

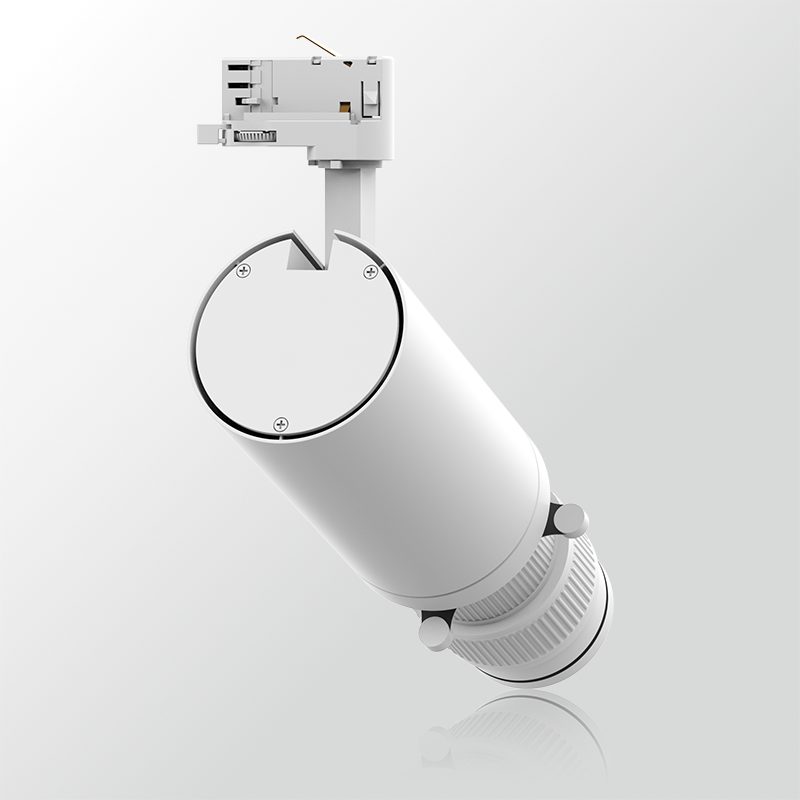

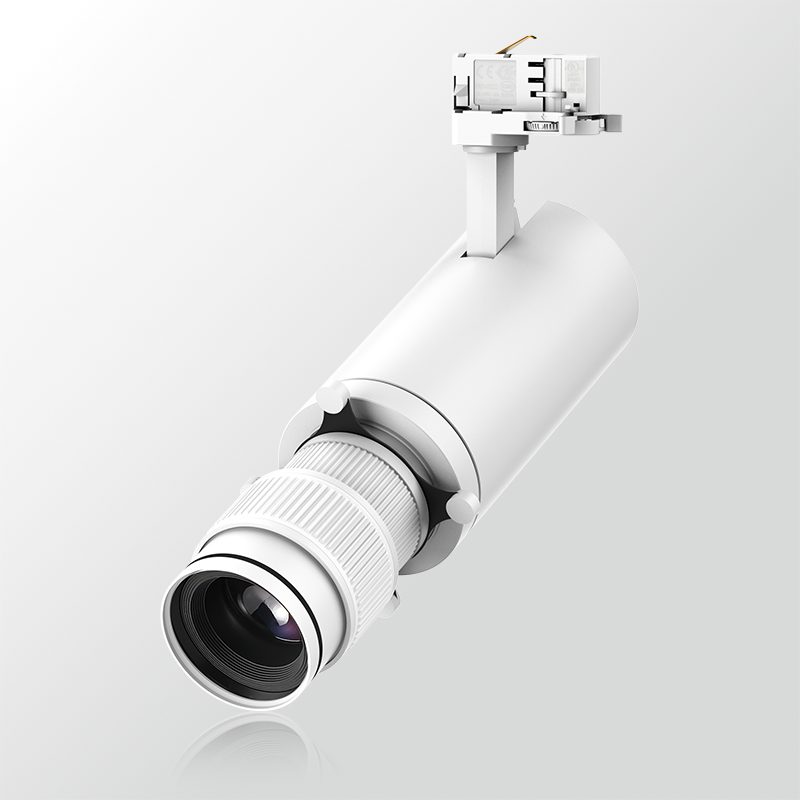

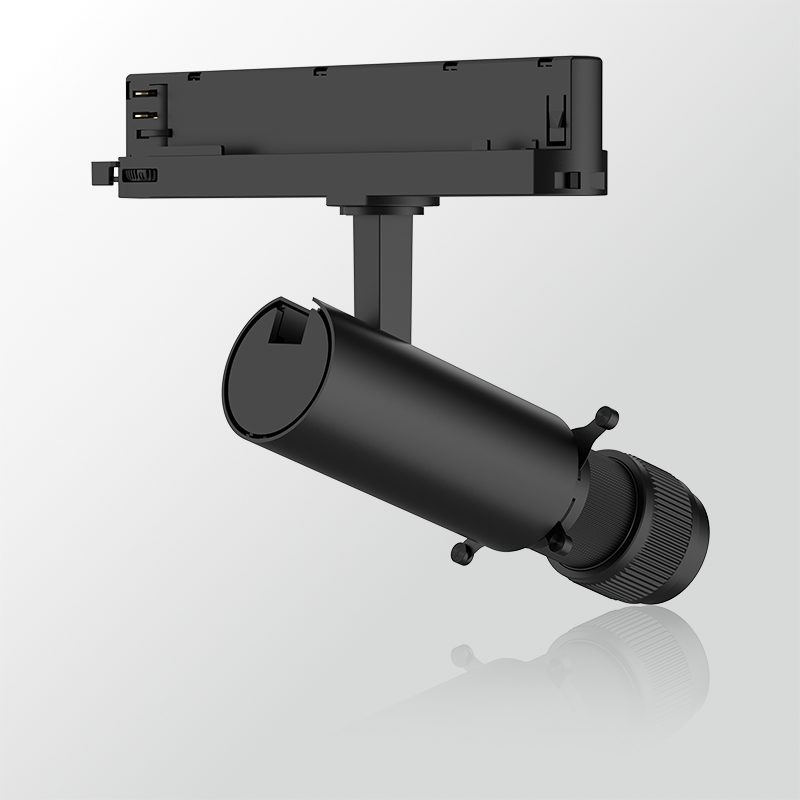

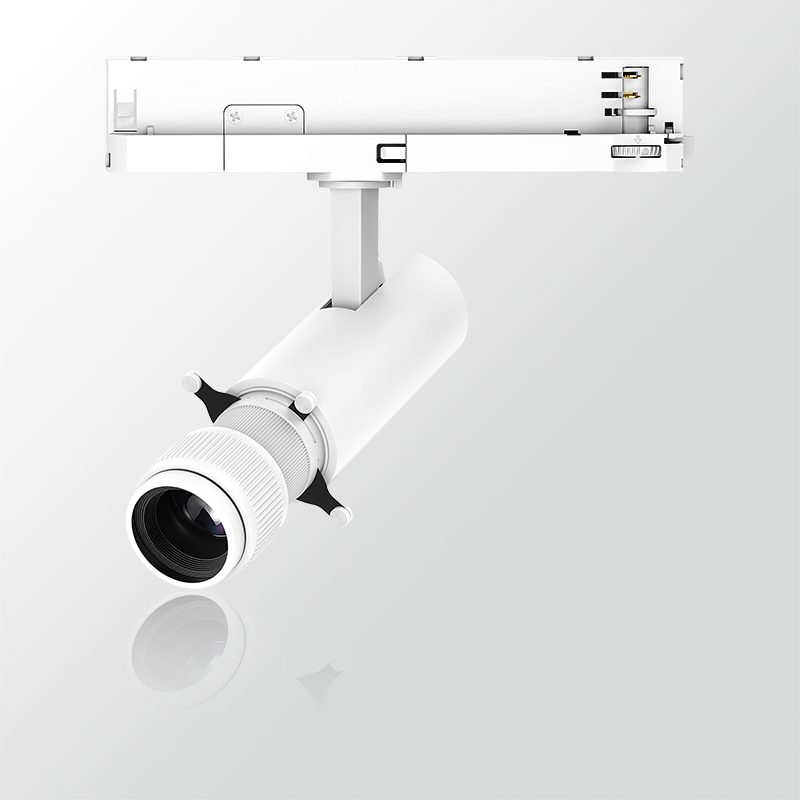

Product gallery
Click any photo to enlarge it and view the full technical specifications. Wattage variants share the same housing.
Features
- 20°–35° beam shape cut by hand
- Two sizes: D50 and D90
- 355° horizontal, 90° vertical adjustment
- Single colour, tunable white, dim to warm, tri-colour
- Self-dimming and tri-colour versions
- Dimmable: DALI, TRIAC, 0/1–10 V, ZigBee, BLE, 2.4G, DMX
- Anti-glare accessories available
- 5-year warranty
Technical & datasheet
Click any photo in the gallery above to open these specifications beside the enlarged image.
| Sizes | D48 × 184 mm, D90 × 282 mm |
|---|---|
| Adapter brands | Global, Powergear, Unipro, STUCCHI, Eutrac |
| Track phase | 4/3/2-wire 1 phase, 6/4-wire 3 phase |
| Power | 5 W / 8 W / 10 W / 20 W / 25 W / 30 W / 35 W |
| LED voltage | DC36V |
| Optics | Lens |
| Beam angle | 20°–35° adjustable |
| Efficiency | LED lumen 100–180 lm/W; lamp lumen 50–110 lm/W |
| CCT | 2700 / 3000 / 3500 / 4000 / 5000 / 6500 K |
| CRI | 80+ / 90+ / 95+ / 98+ |
| SDCM | <3 |
| Driver | Tridonic, Philips, Osram, HEP, TCI, BOKE, Lifud |
| Voltage | AC200–240V, AC100–240V; PF>0.9 |
| Finish | Matt white, matt black |
| Warranty | 5 years |
Product list
D50 series
| Model | Power | LED voltage | Current | Efficacy | Size |
|---|---|---|---|---|---|
| LX-TL-5W-ZS | 5 W | DC36V | 150 mA | 30–80 lm/W | D48 × 184 mm |
| LX-TL-8W-ZS | 8 W | DC36V | 200 mA | 30–80 lm/W | D48 × 184 mm |
| LX-TL-10W-ZS | 10 W | DC36V | 250 mA | 30–80 lm/W | D48 × 184 mm |
D90 series
| Model | Power | LED voltage | Current | Efficacy | Size |
|---|---|---|---|---|---|
| LX-TL-20W-ZS | 20 W | DC36V | 500 mA | 30–80 lm/W | D90 × 282 mm |
| LX-TL-25W-ZS | 25 W | DC36V | 600 mA | 30–80 lm/W | D90 × 282 mm |
| LX-TL-30W-ZS | 30 W | DC36V | 700/750 mA | 30–80 lm/W | D90 × 282 mm |
| LX-TL-35W-ZS | 35 W | DC36V | 800 mA | 30–80 lm/W | D90 × 282 mm |
Photometric files (IES/LDT), installation drawings and certification documents are provided by our sales team per model. Track adapter and circuit configuration are confirmed per order. Adapter brands available across the range include Global, Powergear, Unipro, STUCCHI and Eutrac.
Application scenarios
Illustrative scene — representative application.
Which track system
4-Wire system
Three circuits on one run.
6-Wire system
Additional circuits and control channels.
